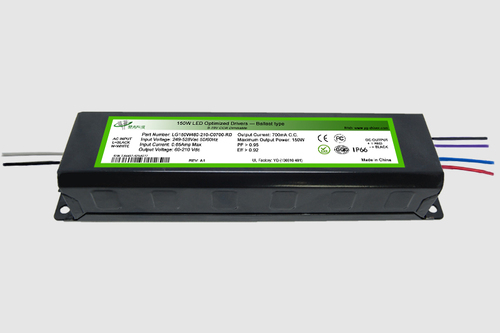

LY150W480-RD Economy Series, 0-10V CCR Dimming LED Power Supply

1. Drive mode: constant current, 0-10V dimming, primary isolation type

2. Technology type: PFC technology+LLC resonance technology

3. Output power: 150W

4. Input voltage: 249~528VAC, 47-63HZ

5. Output voltage: 4 specifications to choose from, ranging from 40~425Vdc

6. Compliant with UL&cUL, PSE, CE, CCC safety certifications:

North American safety standards: UL8750，CSA C22.2，UL1310 CLASS 2

European safety standards: EN61347-1:2008，EN61347-2-13:2006

Japanese safety standards: J61347-1 (H20)，J61347-2-13 (H21)

Chinese safety standards: GB19510.1-2009，GB19510.14-2009

North American EMC standards: FCC 47CFR Part 15 Class B

European EMC standards: EN55015，EN61000-3-2，EN61000-3-3

Japanese EMC standard: J55015 (H20)

Chinese EMC standards: GB17743-2007，GB17625.1-2003

7. Compliant with RoHs standards and IP66 waterproof rating;

8. 94V-0 100 ° C thermal conductive black glue sealing, black steel shell;

9. Suitable for use indoors and in high humidity and high dust environments;

a、 Using active PFC (power factor correction) technology to reduce product power consumption;

1. Working temperature: - 40°~ +90°C（Case Temperature）；

2. Storage temperature: - 40°~ +85°C；

3. Humidity (non condensing): 5% ~ 95%RH；

4. Product cooling method: natural cooling;

5. Vibration resistance: 5~55HZ/3g for 30 minutes;

6. Impact resistance: 1g/S;

7 MTBF： 385000 hours under full load and 40 ° C ambient temperature conditions;

8 LIFE 1： 80000 hours, under full load and 40 ° C ambient temperature conditions;

9. Maximum input current: 0.60A (@ 277V, full load);

a、 Input surge current:< 50A（25°C,  480V, cold start);

b、 Dimming constant current accuracy: ± 5%;

c、 Load adjustment accuracy: ± 3%;

d、 Output current ripple:< ± 3% @ CCR load< ± 5% @ LED load;

e. 0-10V input: voltage 0-10V, current<2mA;

f、 Dimming curve: linear

g、 Dimming output: DC constant current output, dimming range 10-100%;

h、 Output protection:

Output overvoltage, output overcurrent

Short circuit protection can be restored on its own after revocation.
