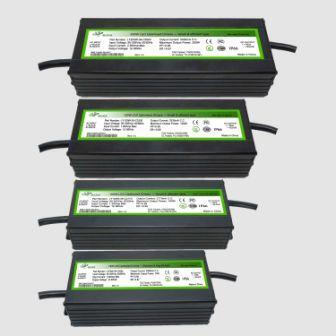

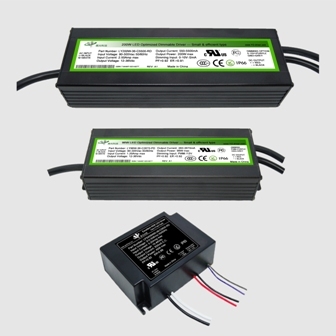

120 Watt, PWM Dimming, LY120W - PD, Compact

Product type: PWM Dimmable Driver
Application: LED Street Lights, LED Tunnel Lights, LED Grille Lights
Size: 170mm(L)×59mm(W)×37mm(H)
Weight: 850g
Warranty: Five years
Products detail
Product parameters
Series model
Product type:
PWM Dimmable Driver
Application:
LED Street Lights, LED Tunnel Lights, LED Grille Lights
Size:
170mm(L)×59mm(W)×37mm(H)
Weight:
850g
Warranty:
Five years

         LY120W - PD Series, PWM Dimmable LED Drivers

1. Drive Mode: PWM Dimming, Constant Current

2. Technology: PFC + LLC

3. Output Power: 120W Max.

4. Input Voltage: 90 to 305VAC,47-63HZ

5. Number of Outputs: One

6. Output Voltages: 4 ~ 343Vdc

7. Output Dimmable Currents: 350mA - 10000mA

8. Output Dimmable Current Range: 10-100%

9. Surge Immunity ( Lightning Protection ):

    Comply with EN61000-4-5, AC line to line 2KV

a. Safety: EN61347, J61347 ( H20 ), UL8750, CSA C22.2

b. EMC: EN55015, J55015 ( H20 ), FCC 47CFR Part 15 Class B

c. Comply with PSE, CE CCC

d. RoHs compliant;

e. Metal Shell, Silicone Potting, Up to 120°C;

f. Compact, Lightweight Design;

g. Water Resistant and Dust Proof Design: IP66, NEMA4,

    for Dry, Damp, Wet Locations;

h. Standard electrical box for installation;

i. Active Power Factor Correction technology to reduce

   power consumption;

j. Safety Isolation between Primary and Secondary.

We could not find any corresponding parameters, please add them to the properties table



1. Operating Temperature: −30 to +60°C;

2. Storage Temperature: −40 to +85°C;

3. Humidity (non-condensing): 5% to 95%RH;

4. Cooling: Convection;

5. Vibration Frequency: 5 ~ 55HZ/2g, 30 minutes;

6. Impact Resistance: 1g/S;

7. MTBF@40°C: 500,000 hours @ Full Load per MIL-217 Notice 2.;

8. LIFE@25°C: 100,000 hours @ Full Load per MIL-217 Notice 2.;

9. Safety: CISPR 22 CLASS B, CISPR 14-1 CLASS B,

                 EN61000-3-2 & EN61000-3-3 Class C,

                 GB19510.14-2009, GB19510.1-2009,

                 GB17743.1-2007, GB17625.1-2003

a. Maximum Input Current: 1.50A (@ 120V, full load);

b. Input Surge Current: <50A (25°C, 230V, cold start);

c. Constant Current Regulation @ PWM Dimming: ±5%;

d. Load Regulation Accuracy @ PWM Dimming: ±3%;

e. PWM Input Signal: 10-24V ( <2mA ), 200HZ-20KHz;

f. PWM Intput Duty Cycle: 10-100%;

g. Output Current Ripple: <1%*Io

h. Leakage Current: 400uA typical; Hold up time: half cycle;

i. Protection: Output over-voltage protection;

                        Output over-current protection;

                        Output short circuit, auto-recovery;

                        Lightning & transient protection built in.

PWM Dimming

Input

Voltage

Vac

Power Factor

Output

Voltage

Vdc

Dimming

Current

mA

Current

Accuracy

%

Typical

Efficiency

%

Location

LY120W-PD Series

@120V

@230V

LY120W-343-C0350-PD 90~305 0.99 0.95 114-343 35-350 ±5 94 Outdoor
LY120W-266-C0450-PD 90~305 0.99 0.95 89-266 45-450 ±5 94 Outdoor
LY120W-171-C0700-PD 90~305 0.99 0.95 57-171 70-700 ±5 94 Outdoor
LY120W-114-C1050-PD 90~305 0.99 0.95 38-114 105-1050 ±5 93 Outdoor
LY120W-86-C1400-PD 90~305 0.99 0.95 28-86 140-1400 ±5 93 Outdoor
LY120W-68-C1750-PD 90~305 0.99 0.95 23-68 175-1750 ±5 93 Outdoor
LY120W-57-C2100-PD 90~305 0.99 0.95 19-57 210-2100 ±5 92 Outdoor
LY120W-49-C2450-PD 90~305 0.99 0.95 16-49 245-2450 ±5 92 Outdoor
LY120W-43-C2800-PD 90~305 0.99 0.95 14-43 280-2800 ±5 92 Outdoor
LY120W-38-C3150-PD 90~305 0.99 0.95 12-38 315-3150 ±5 92 Outdoor
LY120W-34-C3500-PD 90~305 0.99 0.95 11-34 357-3570 ±5 91 Outdoor
LY120W-28-C4200-PD 90~305 0.99 0.95 9-28 420-4200 ±5 90 Outdoor
LY120W-24-C5000-PD 90~305 0.99 0.95 8-24 500-5000 ±5 89 Outdoor
LY120W-18-C6660-PD 90~305 0.99 0.95 6-18 666-6660 ±5 88 Outdoor
LY120W-15-C8000-PD 90~305 0.99 0.95 5-15 800-8000 ±5 87 Outdoor
LY120W-12-C10000-PD 90~305 0.99 0.95 4-12 1000-10000 ±5 86 Outdoor
